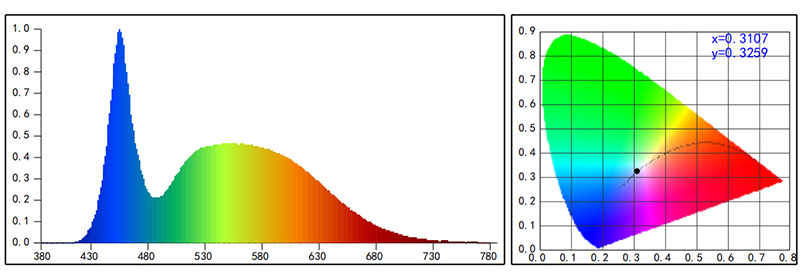

  • Spectrum Diagram
  • Accessories

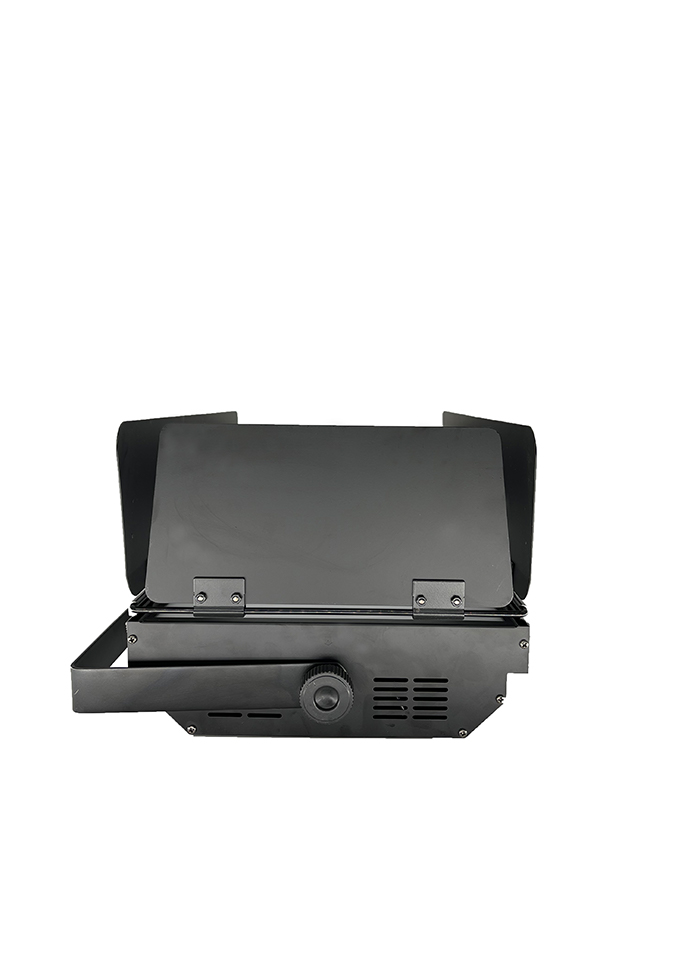

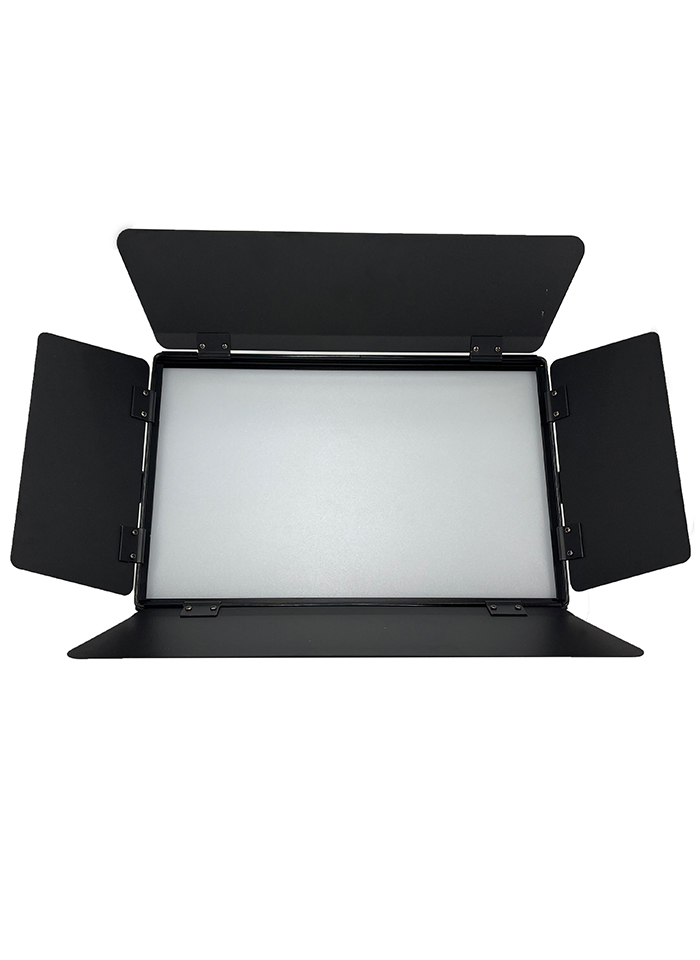

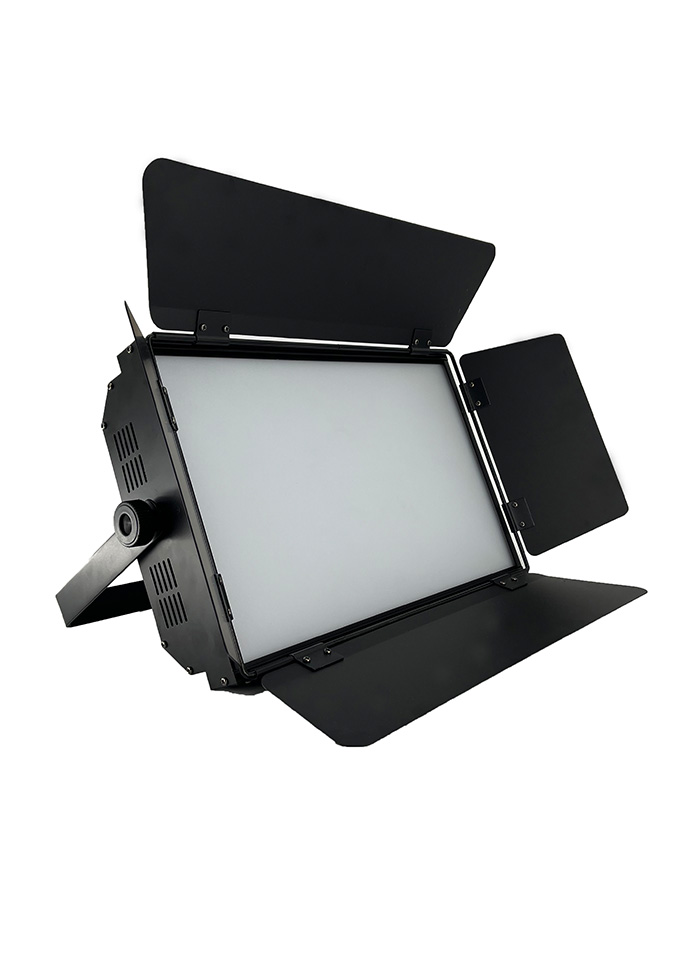

AM-2005


power supply
Input voltage: 100~240VAC, 50/60Hz
Rated power: 100W@220V


optics

Light source: 100W LED
Illumination: 730LX at a distance of 5 meters
Color rendering index: RA≥90
Color temperature: 3200K, 5600K optional


Effect

Vertical scan: manual rotation 180°
Dimming: 0-100% linear adjustment


control

Control mode: DMX512 Channel: 1CH/3CH
physical properties
Protection class: IP20
Shell: high-strength cast aluminum shell, black (customizable color)

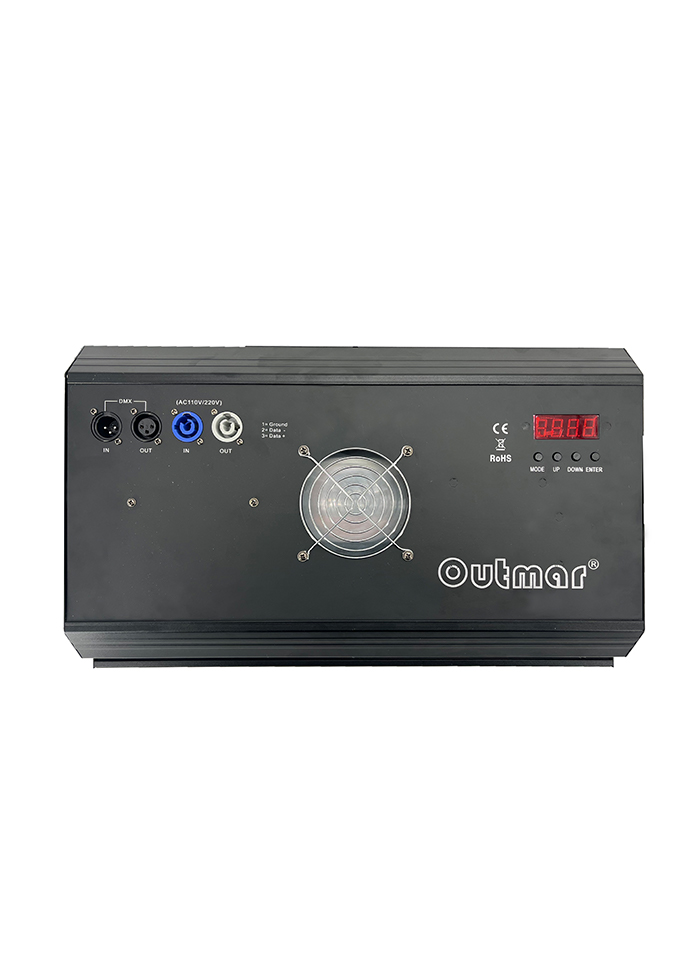

Power connection: powerCON power input/output
Signal connection: three-core DMX signal input/output
Product net weight: 5kg
Working environment: -10℃~45℃
Lamp size: 452x295x90mm

Packing size: 500x350x180mm Standard configuration: Power cord 1PCS, DMX signal line 1PCS
