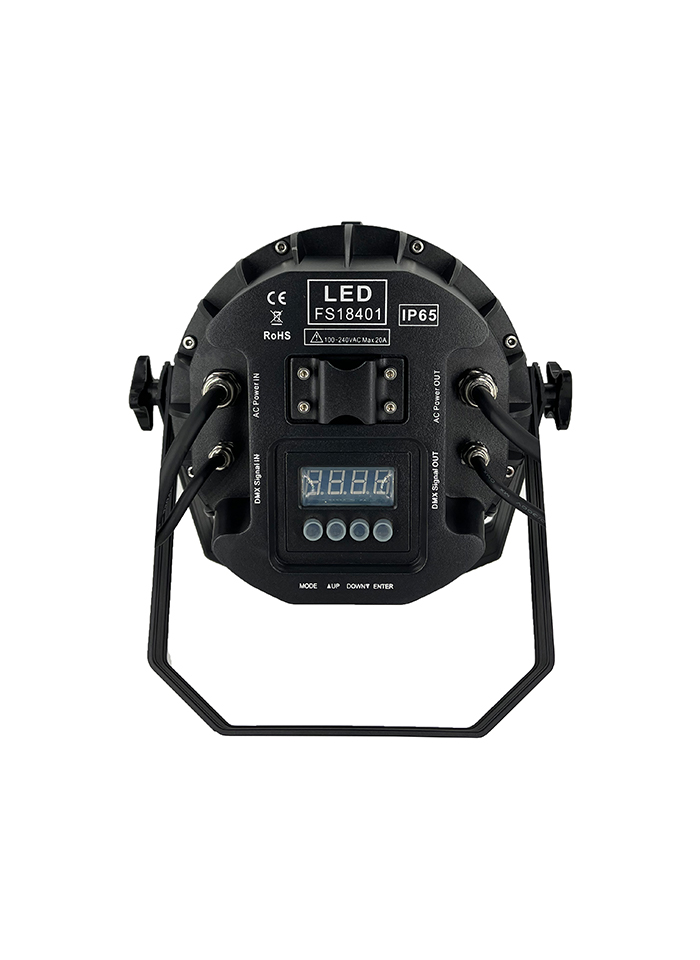

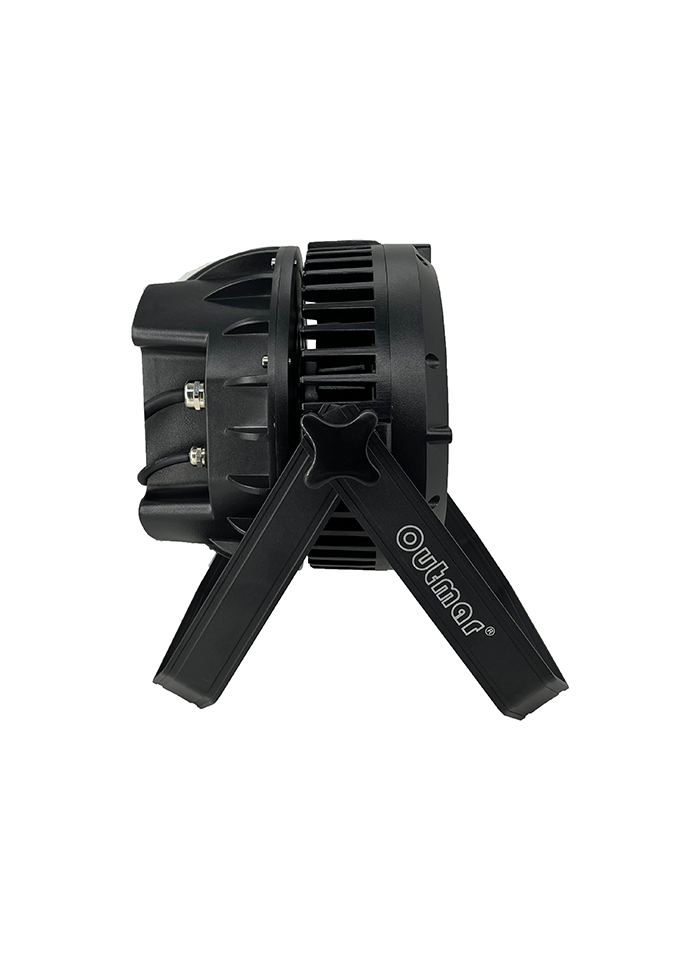

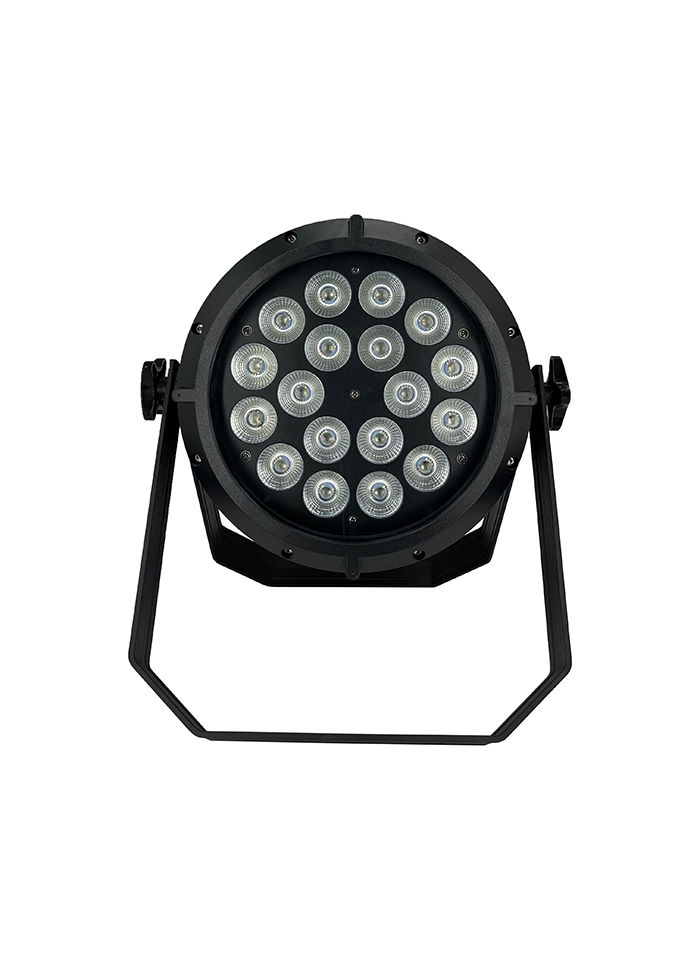

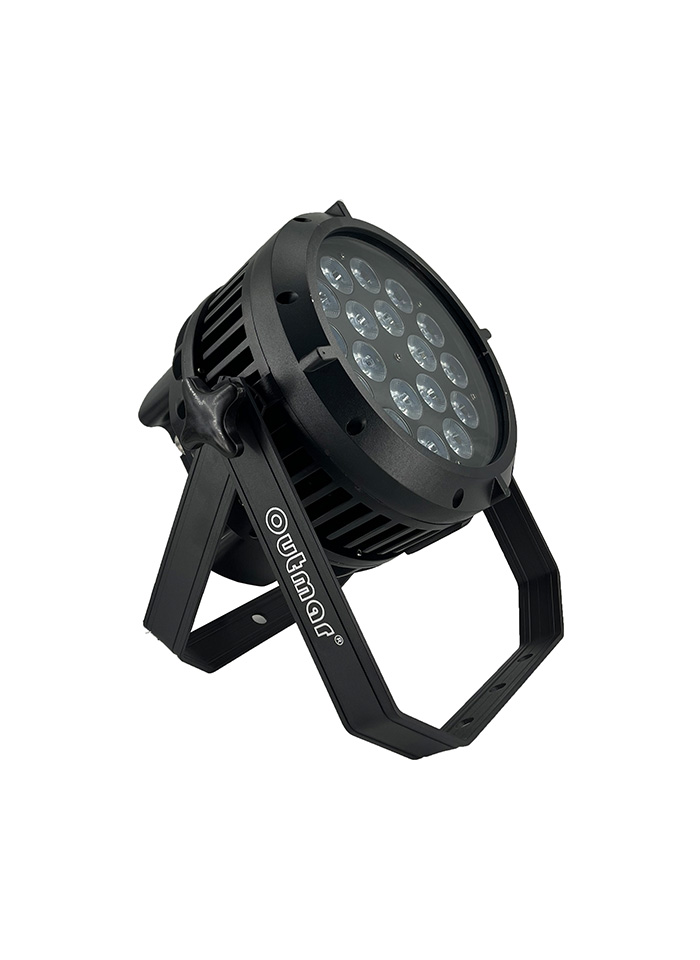

AM-FS18401


power supply
Input voltage: 100~240VAC, 50/60Hz
Rated power: 200W@220V


optics

Light source: 18×10W LED
Color rendering index: RA≥80
Beam Angle: 30°


Effect

Vertical scan: manual rotation 360°
Strobe: 0~30HZ
Color: RGBW (red, green, blue and white) linear color mixing
Dimming: 0-100% linear adjustment


control

Control method: DMX512, master-slave synchronous control mode, built-in programs and user programs can be directly called by the control channel
Channel: 4CH/8CH
physical properties
Protection class: IP65
Shell: high-strength die-cast aluminum alloy
Power Connection: Waterproof Power In/Out
Signal connection: 3-core DMX waterproof signal line input/output
Product net weight: 6.2kg
Working environment: -25℃~45℃
Lamp size: 210x210x291mm

Package size: 290x290x345mm
