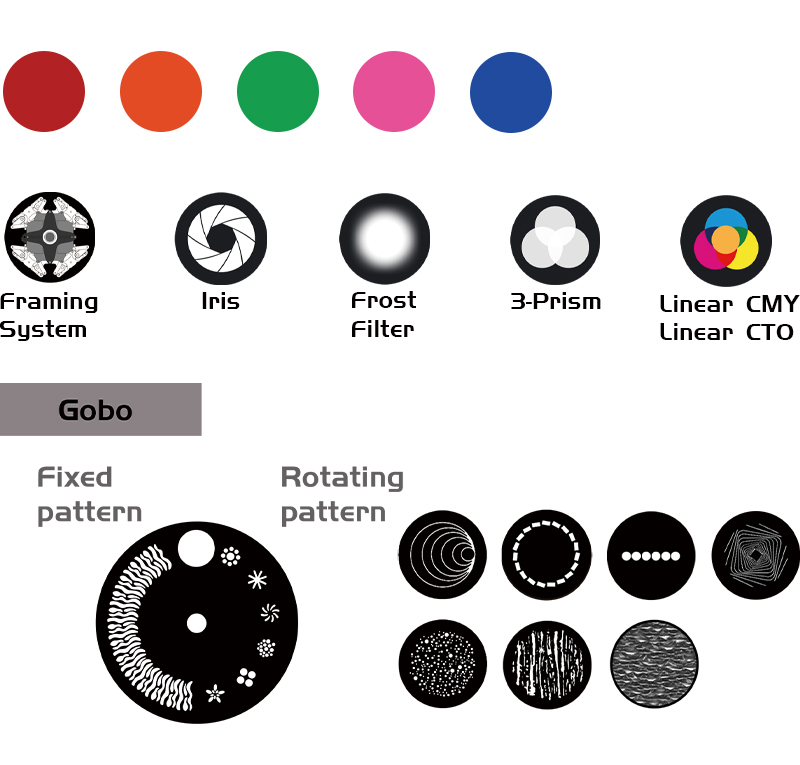

  • Image Color

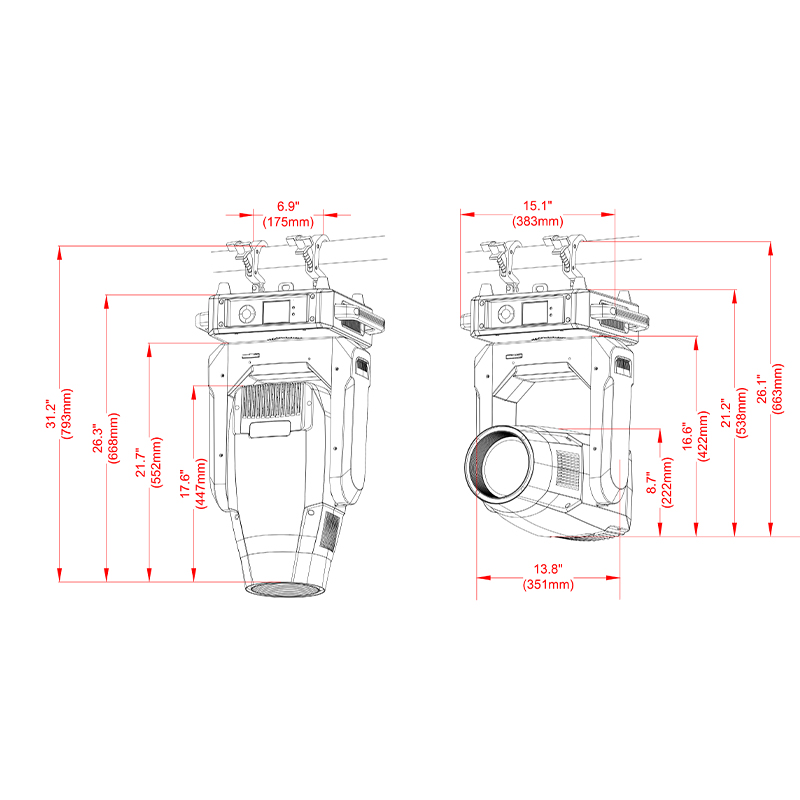

  • Dimension Measurement

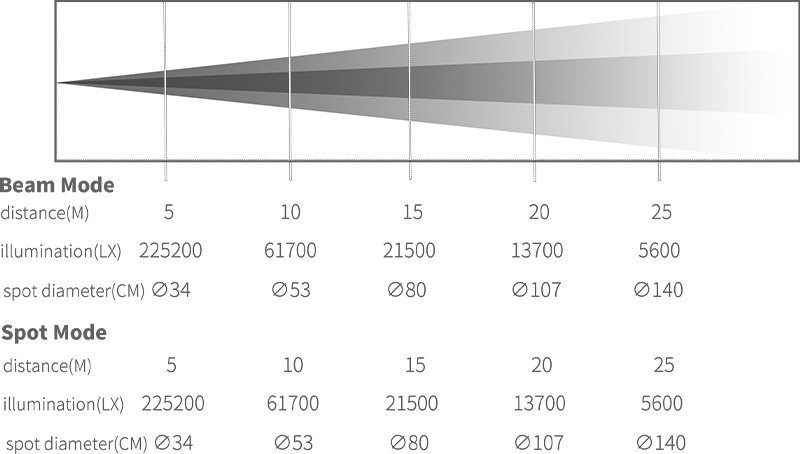

  • Illumination Diagram

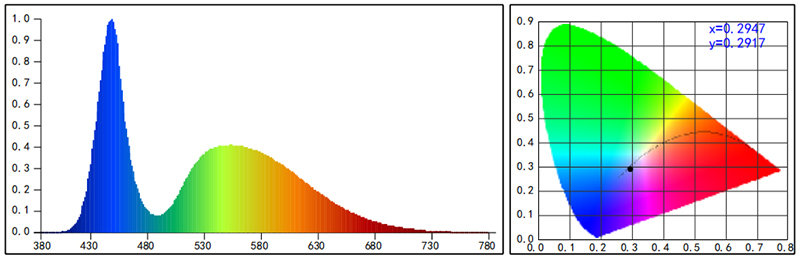

  • Spectrum Diagram
  • Accessories

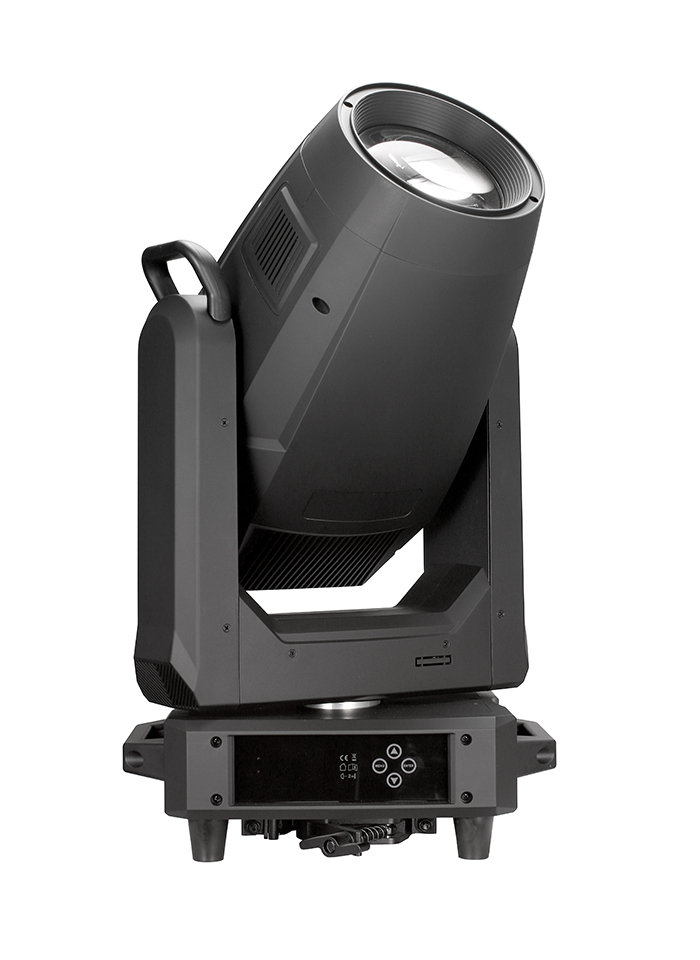

AM-P1000

Power

AC power                           100-240 V AC,  50/60 Hz
Rated power                     1000W@220V

Optics

Lamp                                   800W LED
Rated life                           20000h
LUX                                          5m 225200 LX
Beam angle                      3°~40°
CRI                                       70, remotely selectable
filter for CRI 90


Effects

Horizontal scanning      540°
Vertical scanning             270°
Shutter                               0~25HZ
Dimming                            0-100%  coarse and fine control
Color                                       5colors + white light
Linear CMY color mixing
Linear CTO Color Correction
Fixed pattern                     6 fixed patterns +running pattern
+ white light
Rotation pattern              7 glass patterns, each glass pattern
can be independent positive and
negative rotation
Prism system                     3prism
Frost                                        Independent atomization
Focus                                  DMX linear adjustment
Cutting                                   1 set of four-side cutting system
,90°rotation
Iris                                            Motorized linear iris

Control

Control and Programming
DMX512,With RDM function, software can
be upgraded online, dial the address code
DMXchannels      35CH

Physical characteristics

Protection rating       IP20
Housing                             high temperature resistant flame
retardant plastic
AC power in/thru             Seetronic PowerCon
DMX data in/out              3&5-pin  locking XLR
Weight                                 28kg
Ambient temperature   -20℃~40℃
Lamp size                           383x274x670mm
