Power

AC power                           100-240 V AC,  50/60 Hz
Rated power                     1000W@220V

Optics

Lamp                                   650W LED
Rated life                           20000h

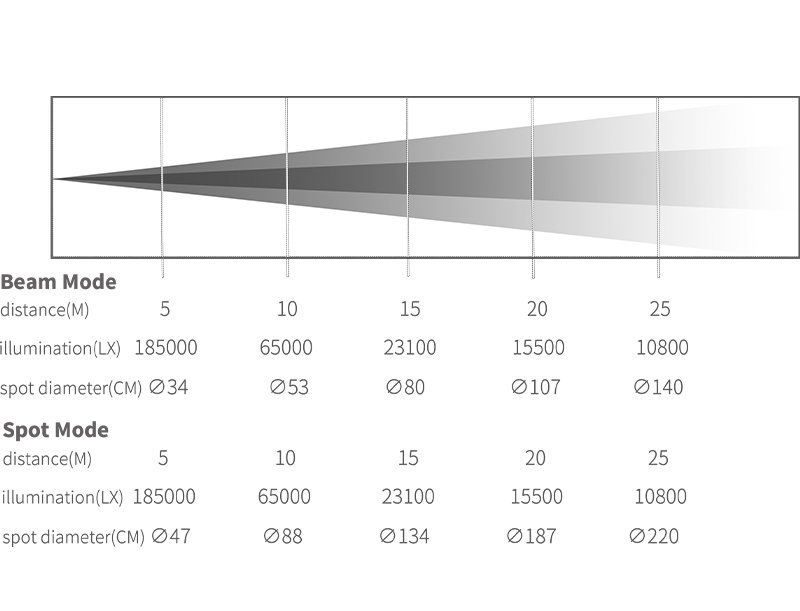

LUX                                          5m 185000 LX
Beam angle                      3°~40°

Effects

Horizontal scanning      540°
Vertical scanning             270°
Shutter                               0~30HZ
dimming                            0-100%  coarse and fine control

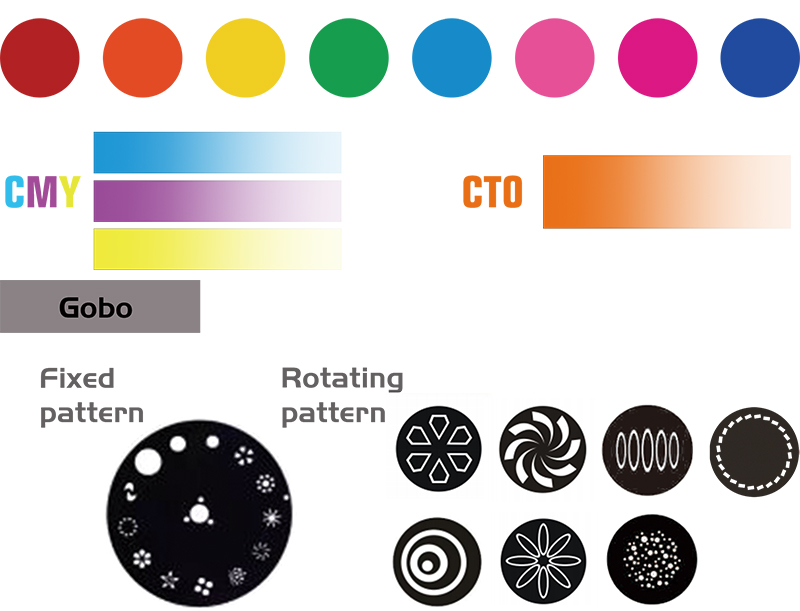

Color                                       8 colors + white light
CMY+CTO
Fixed pattern                     12 fixed patterns + white light
Rotation pattern              7 glass patterns, each glass pattern
can be independent positive and
negative rotation
Prism system                     standard single six row prism and
8 prism, each prism can be independent
positive and negative direction
Frost                                        Independent atomization

Focus                       DMX linear adjustment
Macro function     console reset function, self - walk
mode, master - slave mode
Control

Control and Programming
DMX512，With RDM function, software can
be upgraded online, dial the address code
DMXchannels      22CH/26CH

Physical characteristics

Protection rating       IP20
Housing                             high temperature resistant flame
retardant plastic
AC power in/thru             Seetronic PowerCon
DMX data in/out              3-pin  locking XLR
Weight                                 23.8kg
ambient temperature   -20℃~40℃

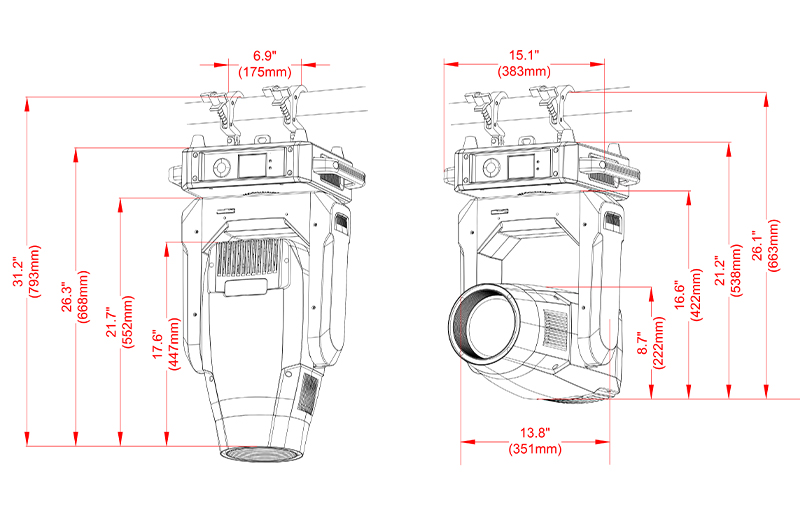

Lamp size                           383x274x668mm
Package size                     750x360x470mm
